Weld mapping software with per-pass tracking
When a client or auditor asks about weld 47 on drawing C-12, the answer should be one click, not a trip to a binder. Map welds onto your drawings and track each one through fit-up, root, fillet, and NDT.
Your drawings, your weld map
Start from hundreds of prebuilt joint drawings or draw your own in the built-in editor. Each mapped weld carries its procedure, its welder, and its inspection status with it.
- Hundreds of prebuilt joint drawings included
- In-app drawing editor for custom joints
- Every weld linked to its WPS and welder
Track every pass to sign-off
Fit-up, root weld, fillet weld, NDT: each stage is recorded per weld, so project status is a report, not a walkthrough. The drag-and-drop symbol builder puts standard welding symbols on the map without CAD.
- Per-pass status: fit-up, root, fillet, NDT
- Drag-and-drop welding symbol builder
- Project-level progress visible at a glance
WELD MAPPING · MODULE SPEC
WM-01
- Passes tracked
- Fit-up, root weld, fillet weld, and NDT, per weld
- Drawings
- Prebuilt joint drawing library, plus an in-app editor for your own
- Callouts
- Hexagon, octagon, oval, rectangle, and triangle weld callouts on the map
- Per-weld record

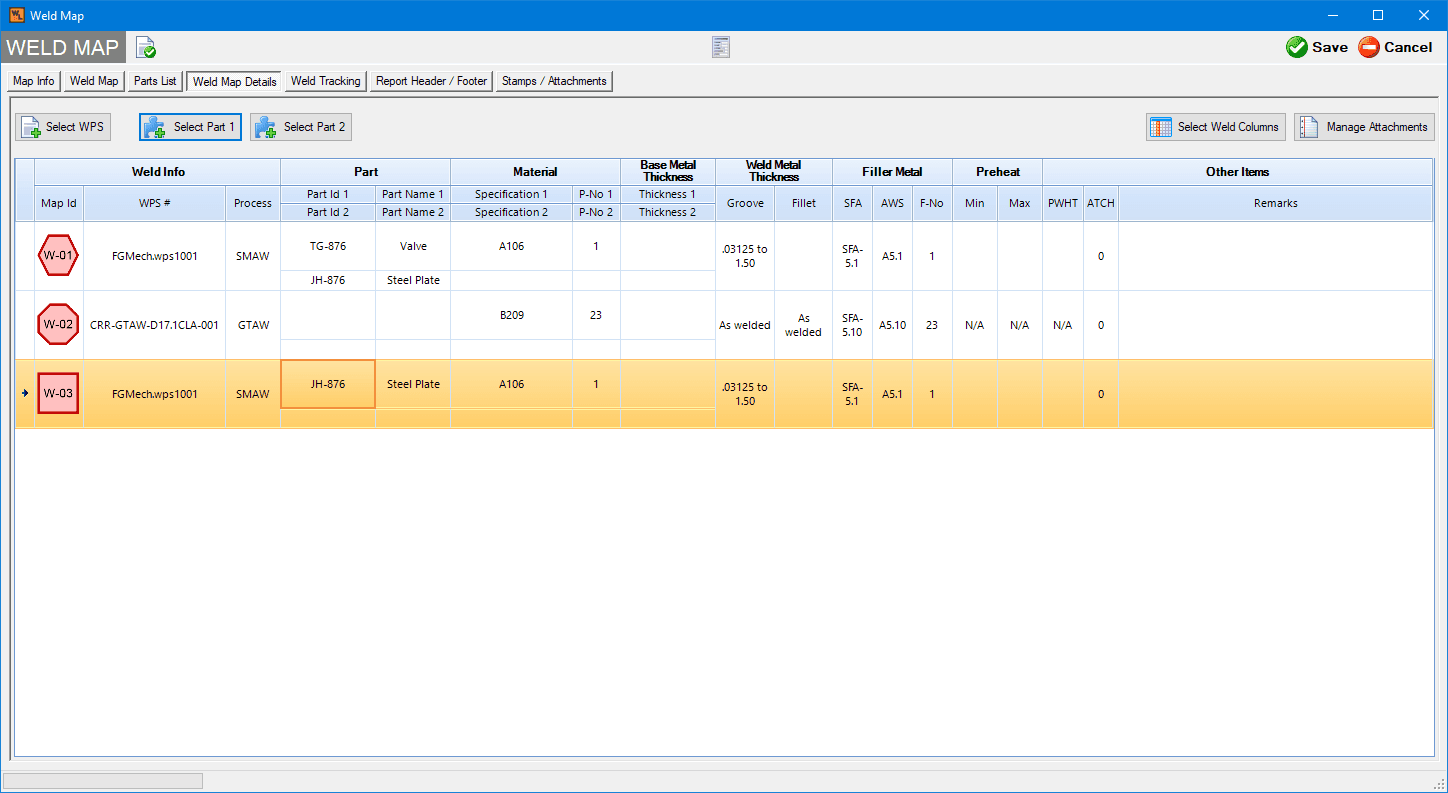

- WPS, process, parts, materials, filler metal, preheat, PWHT
- Symbols
- Drag-and-drop welding symbol builder, placed directly on the map
- Availability
- Enterprise plan, $295/mo, month-to-month
Fields reflect the current release. Ask about anything not listed.
Common questions
Anything not covered here, ask directly. You'll be talking to a CWI software specialist, not a sales rep.
Which plan includes weld mapping?
Weld mapping with drawing integration and per-pass tracking is part of the Enterprise plan.
Can I use my own drawings?
Yes. Use the prebuilt joint drawing library, or create and store your own drawings and weld passes in the built-in editor.
Does it handle NDT records?
NDT results are tracked per weld alongside fit-up and weld passes, and sample NDT forms (liquid penetrant, magnetic particle, radiographic, ultrasonic) are available.
See your whole job on one weld map
Weld mapping and per-pass tracking come with the Enterprise plan, $295 a month.
